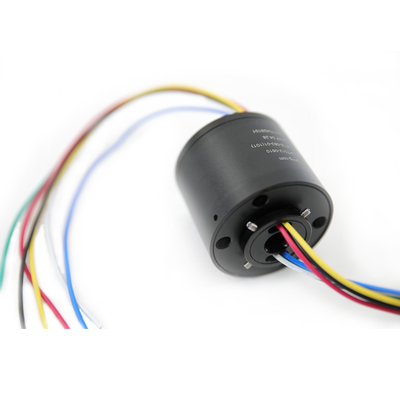

6 Circuit 10A 240VAC Through Hole Slip Ring ID12.7mm

  • 6 Circuit 10A 240VAC Through Hole Slip Ring ID12.7mm
Miejsce pochodzenia Guangdong, Chiny
Nazwa handlowa JINPAT
Numer modelu LPT012-0610
Minimalne zamówienie 1
Cena $64.70-78

Skontaktuj się ze mną, aby uzyskać bezpłatne próbki i kupony.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

W razie jakichkolwiek wątpliwości zapewniamy całodobową pomoc online.

x
Szczegóły Produktu
Numer obwodu 6 Obecna ocena 10a
Woltaż 240 V AC Prędkość pracy 0 ~ 300 obr./min
Temperatura pracy -20~+60℃ Siła dielektryczna ≥1000 V przy 50 Hz między obwodami
Odporność na izolację ≥500MΩ przy 500VDC Średnica otworu 12,7 mm
Materiał kontaktowy Metal szlachetny Materiał mieszkaniowy Stop aluminium
Długość drutu Stojator: 300 mm; Rotor: 300 mm Wilgotność ≤60% wilgotności względnej
Ocena ochrony IP50 Prędkość Ethernet 10 Mbps/100 Mbps/1000 Mbps
Wersja USB USB2.0
Podkreślić

6 circuit through hole slip ring

,

10A 240VAC slip ring

,

ID12.7mm through hole slip ring
opis produktu
Standard Through Hole Slip Ring - ID12.7mm 6 Circuits 10A
Designed for textile machinery and customizable to meet specific requirements.
Product Description
Bargain Price Only in Alibaba
The LPT series through-bore slip rings feature a center hole that can accommodate drive shafts or gas-liquid passages. These versatile components can integrate high frequency, fiber, encoder, waveguide, gas and liquid joints. Advanced fiber brush technology ensures reliable contact with minimal friction.
Key Features
  • Transmits both analog and digital signals
  • Mixed transmission of power and signals including:
    • Ethernet (10Mbps/100Mbps/1000Mbps)
    • Industrial Ethernet (EtherNet, EtherCAT, ProfiNet, Powerlink, SercosIII/IP)
    • HD video (SDI, LVDS)
    • Serial communication (RS232, RS485, RS422)
    • USB2.0
    • Industrial Fieldbus (CANBus, ProfiBus, InterBus, CC-Link, DeviceNet)
    • Sensor signals (thermal resistance, thermocouple, strain gauge)
  • Long service life with maintenance-free operation
  • Easy installation
Applications
Ideal for use in:
  • Industrial automation equipment
  • Medical equipment
  • Wind power equipment
  • Test and exhibition display equipment
  • Robotics
  • Turntable equipment
  • Amusement equipment
  • High-speed railway equipment
  • Packaging machinery
  • Ship offshore equipment
  • Construction machinery
Technical Specifications
Parameter Value
Circuits 6
Current Rating 10A
Voltage 240 V AC/DC
Dielectric Strength ≥1000V@50Hz between circuits
Insulation ≥500MΩ@500VDC
Hole Diameter 12.7mm
Working Speed 0~300 RPM
Contact Material Precious metal
Housing Material Aluminum alloy
Wire Length Stator: 300mm; Rotor: 300mm
Working Temperature -20~+60℃
Humidity ≤60%RH
Protection Grade IP50
Outline Drawing
6 Circuit 10A 240VAC Through Hole Slip Ring ID12.7mm 0
Product Display
6 Circuit 10A 240VAC Through Hole Slip Ring ID12.7mm 1
Our Advantages
Welcome to JINPAT Electronics
Providing free custom slip rings solutions, creating propulsion for your technology
  • 12,000 square meter facility with over 500 employees
  • Recognized as "National High and New Technology" company with 69 patents
  • Long-term partnerships with global enterprises and worldwide agents
  • Over 10,000 successful designs for civil, military, commercial and industrial applications
  • Established in 1996 with 20+ years of production and R&D experience
  • Free custom slip ring solutions for various equipment requirements
  • Fast delivery times
6 Circuit 10A 240VAC Through Hole Slip Ring ID12.7mm 2
Typical Application
6 Circuit 10A 240VAC Through Hole Slip Ring ID12.7mm 3
Frequently Asked Questions
1. What do we do?
We specialize in developing, designing, and manufacturing high quality slip rings, offering comprehensive solutions for rotating systems.
2. What is a slip ring?
A slip ring is an electromechanical device that enables power and electrical signal transmission between stationary and rotating structures. It enhances mechanical performance, simplifies system operation, and eliminates damage-prone dangling wires in movable joints.
3. What kinds of slip rings do we provide?
Our product range includes:
  • Electrical Slip Rings (capsule, through-hole, miniature)
  • Signal Slip Rings (USB2.0/USB3.0, fiber optic rotary joints, high frequency)
  • Pneumatic/Hydraulic Rotary Unions
  • Custom Slip Rings
  • Large volume series
4. How do I choose a slip ring?
Selection requires details about your application's operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. Contact us for assistance with custom or modified solutions.
5. Do you provide custom slip rings?
Yes, our engineering team develops perfect solutions for specific requirements. Contact us to get started.
