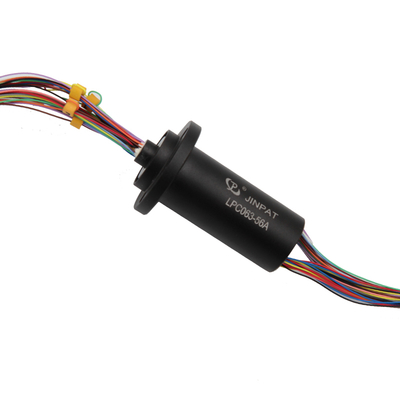

JINPAT 56 Circuit Electrical Slip Ring 240V 2A 0-300rpm

  • JINPAT 56 Circuit Electrical Slip Ring 240V 2A 0-300rpm
Miejsce pochodzenia Guangdong, Chiny
Nazwa handlowa JINPAT
Numer modelu LPC063-56A
Minimalne zamówienie 1
Cena $285

Skontaktuj się ze mną, aby uzyskać bezpłatne próbki i kupony.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

W razie jakichkolwiek wątpliwości zapewniamy całodobową pomoc online.

x
Szczegóły Produktu
Obwody 56 CKT Prędkość obrotowa 0-300 obr./min lub więcej
Temperatura robocza -20 ℃ ~+60 ℃ (przemysłowe) Wilgotność operacyjna 60% wilgotności względnej lub wyższej
Woltaż 240V VDC/DC Aktualna pojemność 2 A na obwód
Materiał kontaktowy Metal szlachetny Materiał mieszkaniowy Stop aluminium
Siła dielektryczna ≥500VAC@50 Hz (P), ≥100VAC@50 Hz (s) Moment obrotowy ≤ 0,88 g.m.
Odporność na izolację ≥100 mΩ@500VDC (P), ≥10 mΩ@100VDC (S) Typ drutu AWG30# Teflon lub inne
Długość drutu 250 mm (opcjonalnie) Dynamiczna fluktuacja oporu ≤35mΩ
Okres życia Dostosowywanie
Podkreślić

56 circuit electrical slip ring

,

240V 2A rotary slip ring

,

300rpm industrial slip ring
opis produktu
JINPAT Electrical Slip Ring - 240V 56 Circuits 2A
Product Specifications
Attribute Value
Type Accessories
Circuits 56 CKT
Rotating Speed 0-300rpm or higher
Temperature Industrial: -20℃~+60℃
Humidity 60%RH or higher
Product Description

Special Offer Available Only on Alibaba

The LPM micro-capsule slip ring integrates 30 or more circuits with optional outer diameters ranging from 12.5mm to 16mm. This series features advanced military-grade surface treatment technology, offering high precision, compact design, and easy assembly. The gold-to-gold contact ensures low resistance and extended service life.

Key Features
  • Compact size for space-constrained applications
  • Gold-to-gold contact for superior conductivity
  • Low resistance for efficient power transmission
  • Extended service life for reduced maintenance
  • Multifarious signal integration capability
Customization Options
  • Rotating speed adjustment
  • Life span specifications
  • Protection grade selection
  • Number of circuits configuration
  • Current capacity variations
  • Size modifications
  • Housing material options
  • Mass production capability
Primary Applications
  • Robotic vacuum systems
  • Rocker camera mechanisms
  • Petroleum and mining platforms
  • Testing equipment
  • Electrical testing devices
  • Medical instruments
Technical Parameters
Electrical & Electronics Mechanical Environmental
Circuits 56 CKT Rotating Speed 0-300rpm or higher
Current 56×2A Temperature Industrial: -20℃~+60℃
Military: -50℃~+80℃
Voltage 240V VC/DC Contact Material Precious Metal
Housing Material Aluminum Alloy Humidity 60%RH or higher
Dielectric Strength ≥500VAC@50Hz(P)
≥100VAC@50Hz(S)		 Protection Grade /
Insulation Resistance ≥100MΩ@500VDC(P)
≥10MΩ@100VDC(S)		 Torque ≤0.88 g.m (for reference)
Dynamic Resistance Fluctuation ≤35mΩ Wire Type AWG30# Teflon or others
Wire Length 250mm (optional)
Life Span Customizable
Model Comparison

The LPC063-56A compact slip ring shares the same number of channels with LPC-56A, differing primarily in size and certain properties. The LPC063-56A measures only 63mm in length, with a rated voltage of 110V (compared to LPC-56A's 220V) and a reduced current rating of 1.5A per channel. For high-capacity transmission requirements, JINPAT offers comprehensive solutions.

Company Advantages
  • 12,000 square meter production facility with 500+ employees
  • Recognized as "National High and New Technology" enterprise with 69 patents
  • Global partnerships with renowned enterprises and worldwide agents
  • 10,000+ successful designs across civil, military, commercial, and industrial applications
  • Established in 1996 with over 20 years of R&D and production experience
  • Free custom slip ring solutions tailored to specific equipment requirements
  • Fast delivery service
JINPAT 56 Circuit Electrical Slip Ring 240V 2A 0-300rpm 0
Frequently Asked Questions
What do we do?

We specialize in developing, designing, and manufacturing high-quality slip rings, offering comprehensive solutions for rotating systems.

What is a slip ring?

A slip ring is an electromechanical device that enables power and electrical signal transmission between stationary and rotating structures, improving mechanical performance while eliminating damage-prone dangling wires.

What kinds of slip rings do we provide?
  • Electrical Slip Rings (capsule, through-bore, miniature)
  • Signal Slip Rings (USB, fiber optic, high frequency)
  • Pneumatic/Hydraulic Rotary Unions
  • Custom Slip Rings
  • Large volume series production
How do I choose a slip ring?

Selection requires details about your application's operating parameters including circuit count, voltage/amperage requirements, operating speed, and mounting type. For custom solutions, our engineering team provides expert guidance.

Do you provide custom slip rings?

Yes, our engineers develop tailored solutions for unique requirements. Contact us to begin the customization process.
