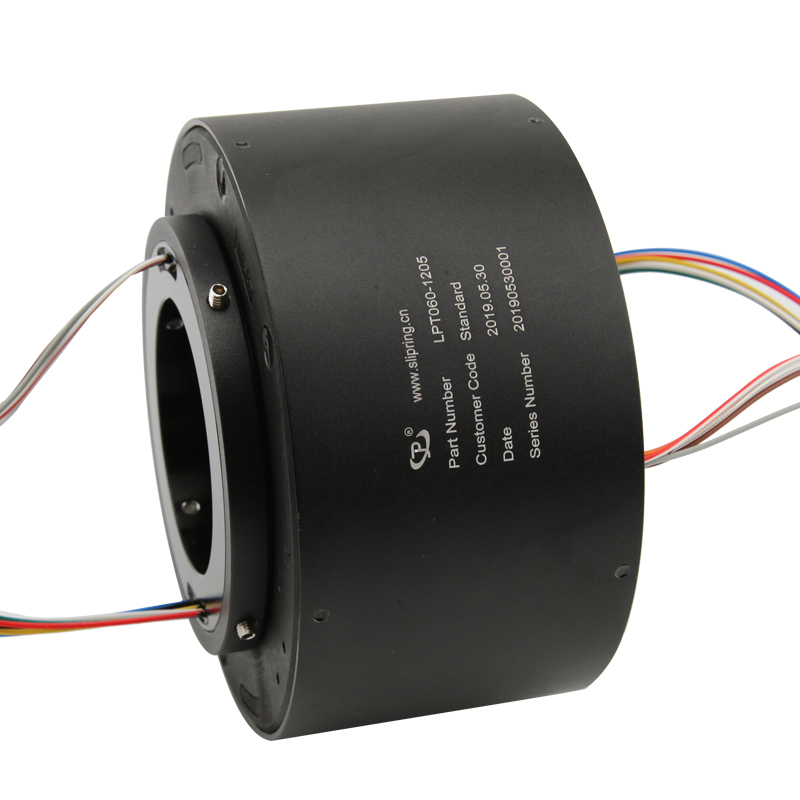

12 Circuit Through Hole Slip Ring 5A 300rpm for Industrial Automation

Place of Origin	Guangdong, China
Nazwa handlowa	JINPAT
Model Number	LPT060-1205
Minimum Order Quantity	1
Cena	$266

Skontaktuj się ze mną, aby uzyskać bezpłatne próbki i kupony.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

W razie jakichkolwiek wątpliwości zapewniamy całodobową pomoc online.

Szczegóły Produktu

Current Rating	5A	Number of Circuits	12
Working Speed	0-300rpm	Working Temperature	-20℃~ +60℃
Working Humidity	60%RH or higher	Voltage Rating	380VAC/DC or higher
Dielectric Strength	≥800V@50Hz between each circuit	Insulation Resistance	50MΩ@ 500VDC
Electrical Noise	30mΩ Min	Contact Material	Precious metal
Lead Wire Length	Standard 300mm (11.811inch)	Housing Material	Aluminum alloy
Torque	≤9.25 g*m (for reference)	Protection	50
Ethernet Rate	10Mbps/100Mbps/1000Mbps
Podkreślić	12 circuit through hole slip ring , 5A industrial automation slip ring , 300rpm through hole slip ring

opis produktu

Electrical Swivel Connector - Multiple Channel Current Optional

For Multi-Industry Equipment Ethernet Slip Rings

Product Attributes

Type	Electronic Accessories
Current Rating	5A
Number of Circuits	12
Working Speed	0-300rpm

Product Description

LPT series are through-bore slip rings designed for multi-industry applications. The center hole can pass through drive shafts or gas-liquid passages, and can integrate high frequency, fiber, encoder, waveguide, gas and liquid joints.

Using advanced fiber brush technology ensures reliable contact under extremely low friction. Available with center holes from 0 to 1000mm, current from mA to 5000 amps, and voltage up to 10000 volts to meet diverse transmission needs.

Key Features

Transmits both analog and digital signals
Mixed transmission of power and signals including:
- Ethernet (10Mbps/100Mbps/1000Mbps)
- Industrial Ethernet (EtherNet, EtherCAT, ProfiNet, Powerlink, SercosIII/IP)
- HD video (SDI, LVDS)
- Serial communication (RS232, RS485, RS422)
- USB2.0
- Industrial Fieldbus (CANBus, ProfiBus, InterBus, CC-Link, DeviceNet)
- Sensor signals (thermal resistance, thermocouple, strain gauge)
Long service life with maintenance-free operation
Easy installation

Applications

Industrial automation equipment
Medical equipment
Wind power equipment
Test equipment
Exhibition and display equipment
Robotics
Turntable equipment
Amusement equipment
High-speed railway equipment
Packaging machinery
Ship offshore equipment
Construction machinery

Technical Specifications

Circuits	12 circuits
Operating Speed	0-300rpm
Working Temperature	-20℃ to +60℃
Working Humidity	60%RH or higher
Electrical Specifications
Voltage Rating	380VAC/DC or higher
Current Rating	5A per circuit
Dielectric Strength	≥800V@50Hz between each circuit
Insulation Resistance	50MΩ@ 500VDC
Electrical Noise	30mΩ Min
Mechanical Specifications
Contact Material	Precious metal
Lead Wire Length	Standard 300mm (11.811inch)
Housing Material	Aluminum alloy
Torque	≤9.25 g*m (for reference)
Protection	IP50
